Electric Water Heater Breaker Size

Electric Water Heater Breaker Size – Comprehensive Break Down

You may be wondering which water heater circuit breaker will be the right size to have it installed. Some factors come in handy when picking a circuit breaker for your water heater, and they have to be considered for you to enjoy a continuous supply of hot water without fail.

One of the requirements before having your electric water heater replaced is a permit. The permit will allow the job to be inspected by a professional to ensure the replacement of your water heater will not interfere with the electrical or plumbing plans. It will be sure that the replacement of your water heater complies with area code requirements.

What Electric Size Water Heater Breaker is the Best?

This article will mainly focus on the electrical requirements that will be needful for a standard tank-style water heater. The need to replace your circuit breaker may be an upgrade from your previous one. You need to make sure all the electrical requirements and connections are up to date.

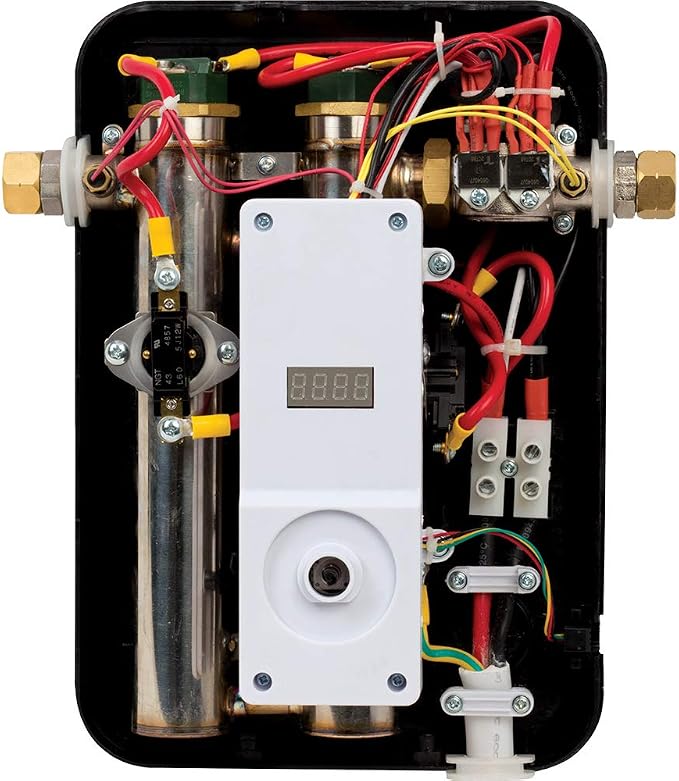

For your electric water heater to be of significant service to you, it needs a dedicated circuit breaker with a 240- volt to serve the water heater alone. The wiring is simple and straightforward whereby, there is a 30-amp double-pole circuit breaker plus a 10-2 non-metallic cable. The water heater circuit whereby the white wire in the circuit is connected to the white wire lead in the water heater. The black wire is connected to the black wire lead in the water heater.EcoSmart ECO 11 Electric Tankless Water Heater, 13KW at 240 Volts with  Patented Self Modulating Technology - Instant Hot Water Heater - Amazon.com

The white circuit wire is hot and not a neutral wire. You will have to mark it clearly at the ends of the water heater and the circuit breaker box. For a 240-volt circuit, it carries live current in both the black and white wires, unlike the 120-volt circuit.

This electrical connection is in a junction box that is at the top of your water tank heater. Inspection of the connection in the junction box, you will need to uncover the plate at the top. You will note that the wire conductors leading to your heater are enclosed always in a flexible metal cable. This flexibility makes it easier for you when replacing your heater, and it comes in handy in areas that suffer from earthquakes.

To test whether your circuit is working, have the cover plate removed and hold a non-contact voltage tester close to the wire connections. The tester will not light up if the circuit breaker has been switched off correctly. Be sure to turn off the power connecting to the circuit before proceeding to touch or examine the water heater electrical connections. The circuit enjoys a 30-amp double-pole circuit breaker. Have the appropriate circuit breaker in the breaker box switched off then proceed to use a voltage tester to ensure the circuit is off by testing the water heater?

The watts are labeled clearly on the specification in most of the heaters available in the market. The electrical wiring together with the circuit breaker will offer you the needed information to have your heater working correctly without tripping. The present ground wire is in connection to the service ground with the other wire connected to the water heater ground connection.

A water heater with a 240-volt connection with a circuit breaker of 20-amp and a 30-amp in place it is likely to start a fire with the latter likely to trip. The rating of the watts is clearly on the specification on the side of your water heater with a 216-volt water heater using more than 208 amps which is more than the circuit breaker rating.

To determine the size of the circuit breaker you will need for your heater you will need to multiply the value of your current by 125%. A circuit breaker of 156 amps will be of great help to a 1,500-watt heater with the 120-volt circuit. A 20 amp circuit breaker will be of great assistance to a 12 gauge wire.

Some years back, it was usual to have a 4000-watt water heater depending on a 20 amp circuit breaker. In the instance where your electric water heater provides you with cold water, there is a chance it may have tripped the circuit breaker. A large number of electric water heaters operate on 220 volts to 250 volts.

It is good to know about the inner wiring that leads to the heating element in your electric water heater. Each of the heating elements has a thermostat which can be found in the access panels that are mounted on the side of your water heater tank to control them. The heating elements are connected with screws that lead to the water heater together with the thermostat. You will not need to interfere with this connection unless you have to replace the thermostat or the heating element in an existing water heater.A Must Read) Water Heater Breaker Size & Water Heater AMPS

CONCLUSION
Tripping your circuit breaker is something that can be avoided at all costs. All you need is to be keen on the circuit breaker you purchase for your heater. The calculations may be too much for an average individual, and you may require the help of an electrician with the installation of your circuit breaker. With the right circuit breaker in place and the right conditions for your heater, you will be sure to have a constant supply of hot water at all times without fail. Be sure to follow the safety measures put in place before beginning your procedure to have your water heater circuit breaker replaced.
